Product Description
Free Local Pick-Up
Shipping Quote Calculated at Checkout

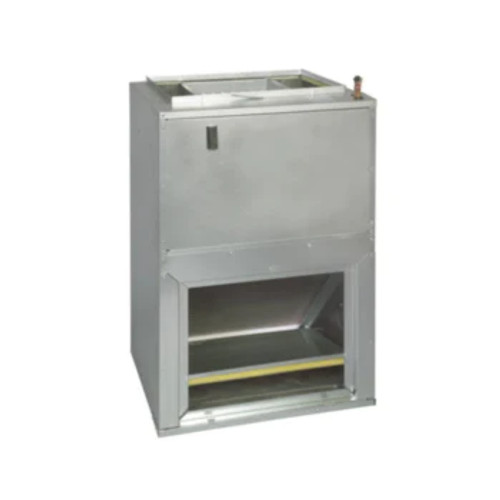

AWUF Ducted Wall Mounted Air Handler, Two-Speed PSC Motor, 1.5-3 Ton, 24 in Cabinet with Orifice Expansion.
Cabinet Features:
-
Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193.
-
Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193.
-
Built-in filter rack (filter included).
-
Large chassis (2-1/2 and 3 ton units), front return only.
-
Small chassis (1-1/2 and 2 ton units), front or bottom return.
-
Wall-hanging bracket provided.
Specifications:
-
Equipped with a Check Flowrater for cooling-only and heat pump operation.
-
Direct-drive, multi-speed motors allows air volume variation for heating/cooling.
-
Multi-speed ECM: AWUF19, 25, 31, 32, 37.
-
Multi-speed PSC motor: AWUF18, 24, 30, 36.
-
Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW.
-
Aluminum tubing coils on all models.
-
Factory-installed pull-type disconnect.
-
Thermoplastic drain pan with bottom primary and secondary drain connections.
-
AHRI Certified.
-
ETL Listed.
Product Benefit
-
All Aluminum Coil.
-
Improved Reliability and Quality.
-
Factory TXV Installed for Quicker Install.
-
More Efficient Refrigerant Metering.
Dimensions:
Height: 36’’
Width:24’
Depth: 21’’
Weight: 109 lbs
This product may or may not contain cosmetic damage such as scratches, and dents that do not effect the mechanics of the product.
